Transfer Printer - Large

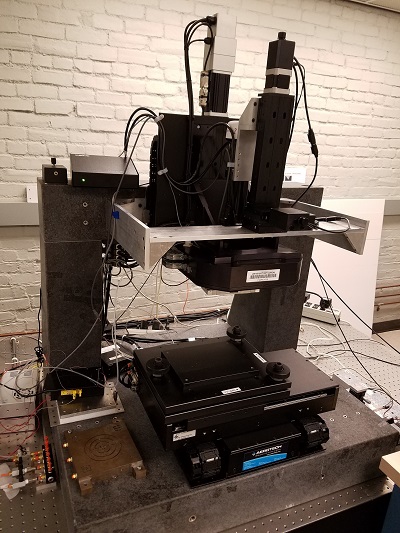

This is a precision 4-axis (XYZ + rotation) stage with vertical high magnification zoom camera with dark field illumination. The standard configuration tool side accepts 1"x3" glass slides held by vacuum chuck. The substrate side features multiple vacuum chucks for mounting a donor and receiver substrate. The machine also has adaptations for performing solid state superionic stamping.
